Stealkey Customs
SC DisPro Corsair 7000D D-RGB
Ready to ship 1-3 days
Details

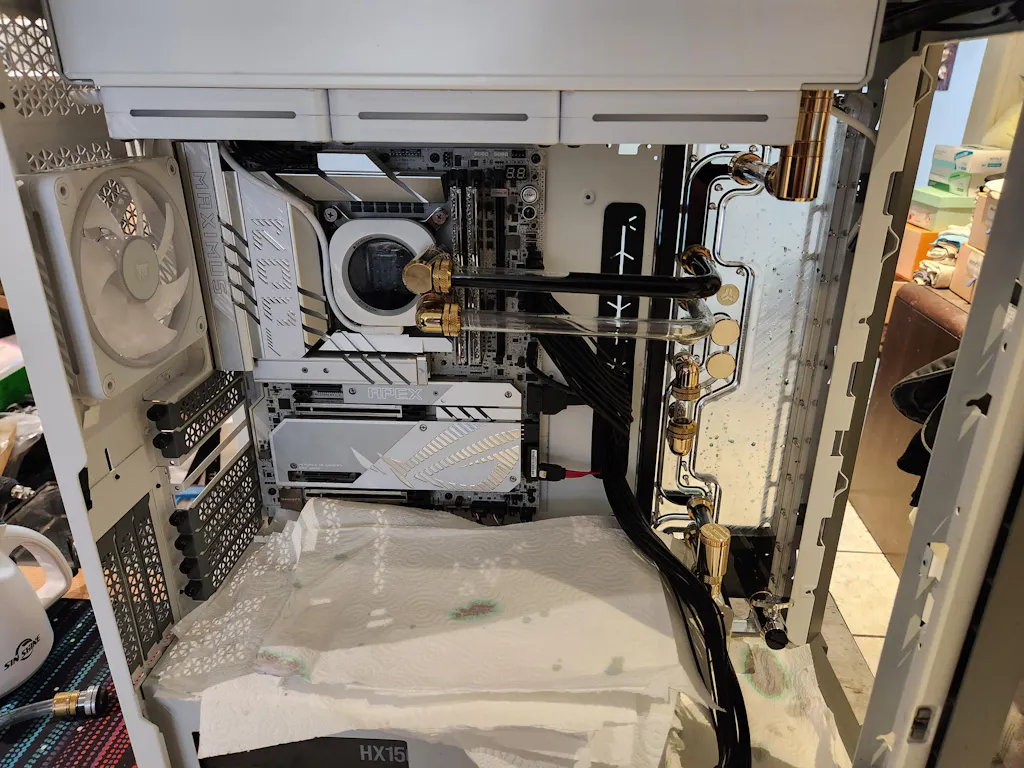

The SC Dis-Pro Corsair 7000D D-RGB is a high-quality combination of distroplate, reservoir, and pump solution, specifically designed for the Corsair 7000D Airflow and the iCUE 7000X RGB case.
In total, the distroplate offers 14x G1/4" ports, optimally positioned for connection to:
- 1x CPU block
- 1x GPU block (horizontal or vertical)
- up to 2x 360 mm radiators

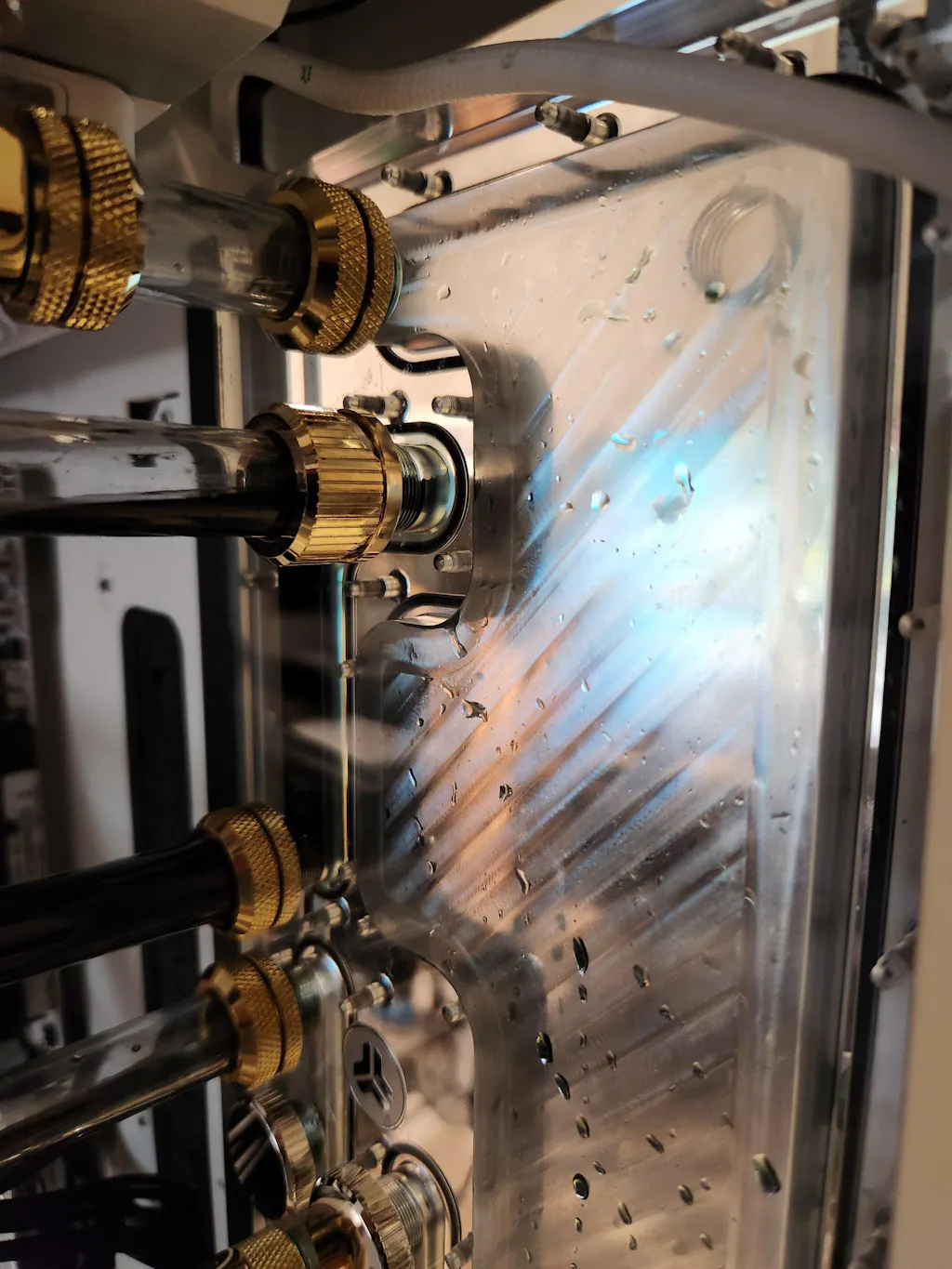

The ports are strategically placed to minimize bending, allowing for a clean and efficient water cooling loop.

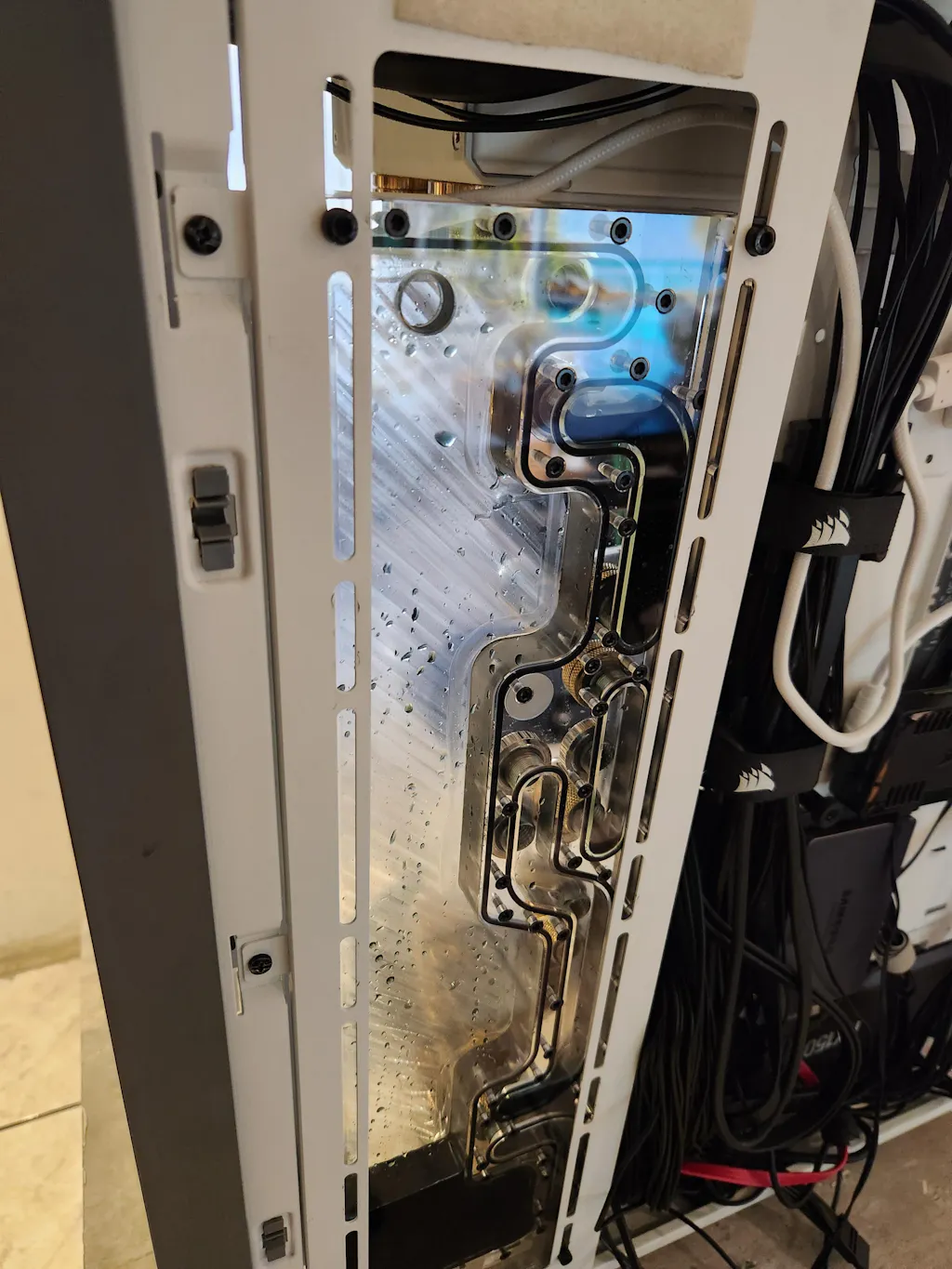

Installation is to the right of the motherboard, directly onto the radiator mounting plate of the case. 4x M4x6 mm hex screws are included. The fit is perfectly matched to the Corsair 7000D cases.
An integrated addressable D-RGB LED strip runs along the left side of the distroplate, creating stunning lighting effects. An anodized black aluminum cover hides unwanted hotspots for a clean look. The connection is via a 3-pin 5V D-RGB header on the motherboard and is fully compatible with ASUS Aura Sync, MSI Mystic Light, ASRock Polychrome, and other major systems.
Pump Compatibility
Thanks to an integrated universal adapter, the distroplate is compatible with both D5 and DDC pumps – maximum flexibility for pump selection and installation.
Radiator Compatibility of the 7000D Distroplate
- Front: 1x 360 mm radiator up to 58 mm thick
- Top: 1x 360 mm radiator up to 58 mm thick
Coolant Note
Only suitable coolant should be used to ensure safe and long-term operation. This protects the distroplate from material damage and reliably prevents corrosion, deposits, and leaks in all water cooling components. A compatibility list of recommended coolants is available for reference.
Technical Specifications of the Corsair 7000D Distroplate
- CNC-machined and hand-assembled in Germany
- Product dimensions (W x H x D): 463 x 135 x 33 mm
- Color: Transparent
- Material: Acrylic glass
- Reservoir volume: approx. 570 ml
- D-RGB cable length: 500 mm
- Supports up to 2x 360 mm radiators, 1x CPU water block, 1x GPU water block
- Connections: 14x G1/4" ports
Scope of Delivery
- 1x SC Dis-Pro Corsair 7000D D-RGB
- 4x M4x6 mm hex screws
- 6x SK plug G1/4" sealing caps – silver
Important Note
- Compatible only with Corsair 7000D and iCUE 7000X RGB.
- D5 or DDC pump is not included.
- Use of incompatible coolants may damage acrylic components.
- DDC and D5 pumps are water-lubricated and must not run dry, as this may cause permanent bearing damage.
- Only hand-tighten fittings into the distroplate.
- Do not use alcohol-based cleaners or solvents to clean the reservoir or distroplate, as they may damage the acrylic.
