Stealkey Customs
Lian Li XL Crosscool Distroplate
Quantity:

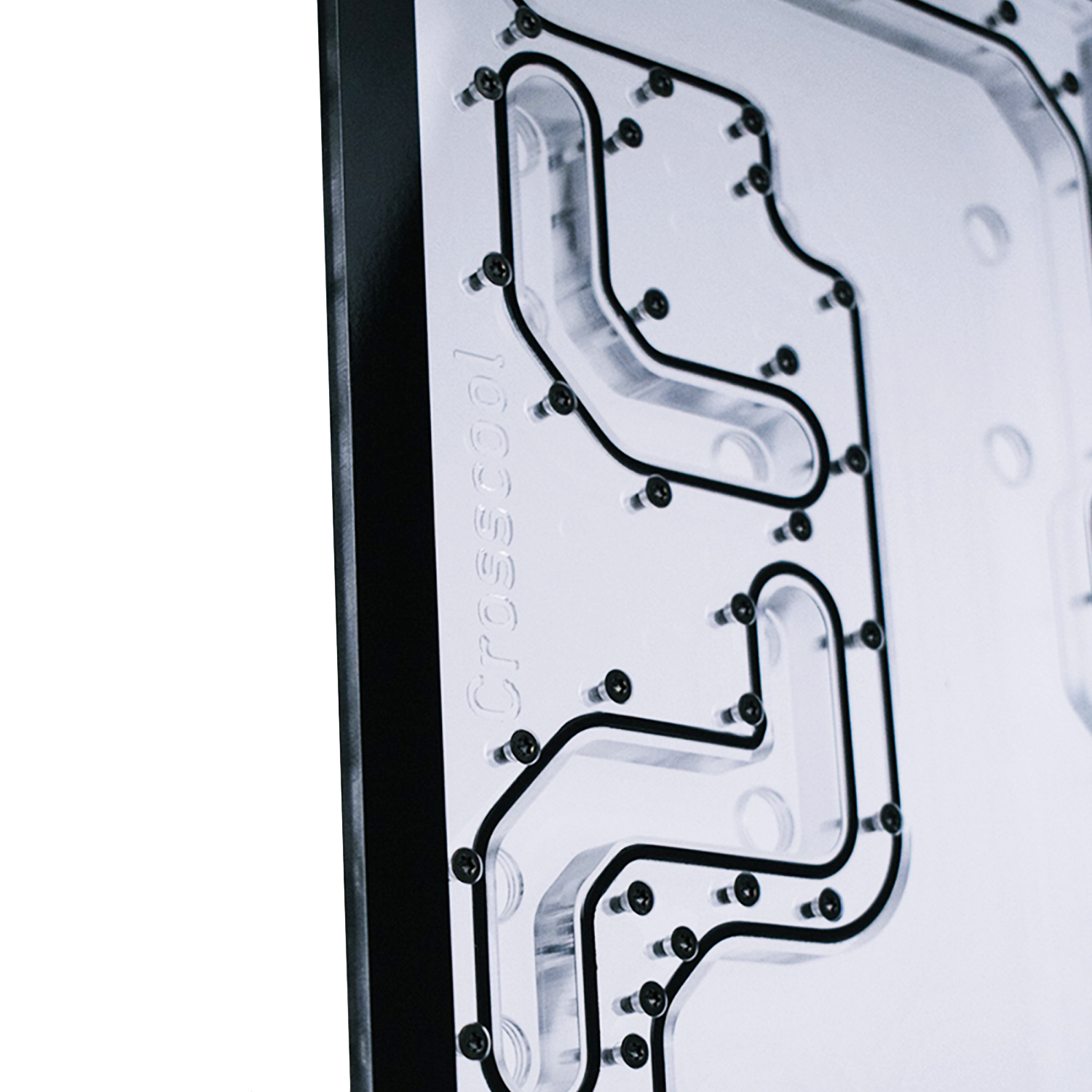

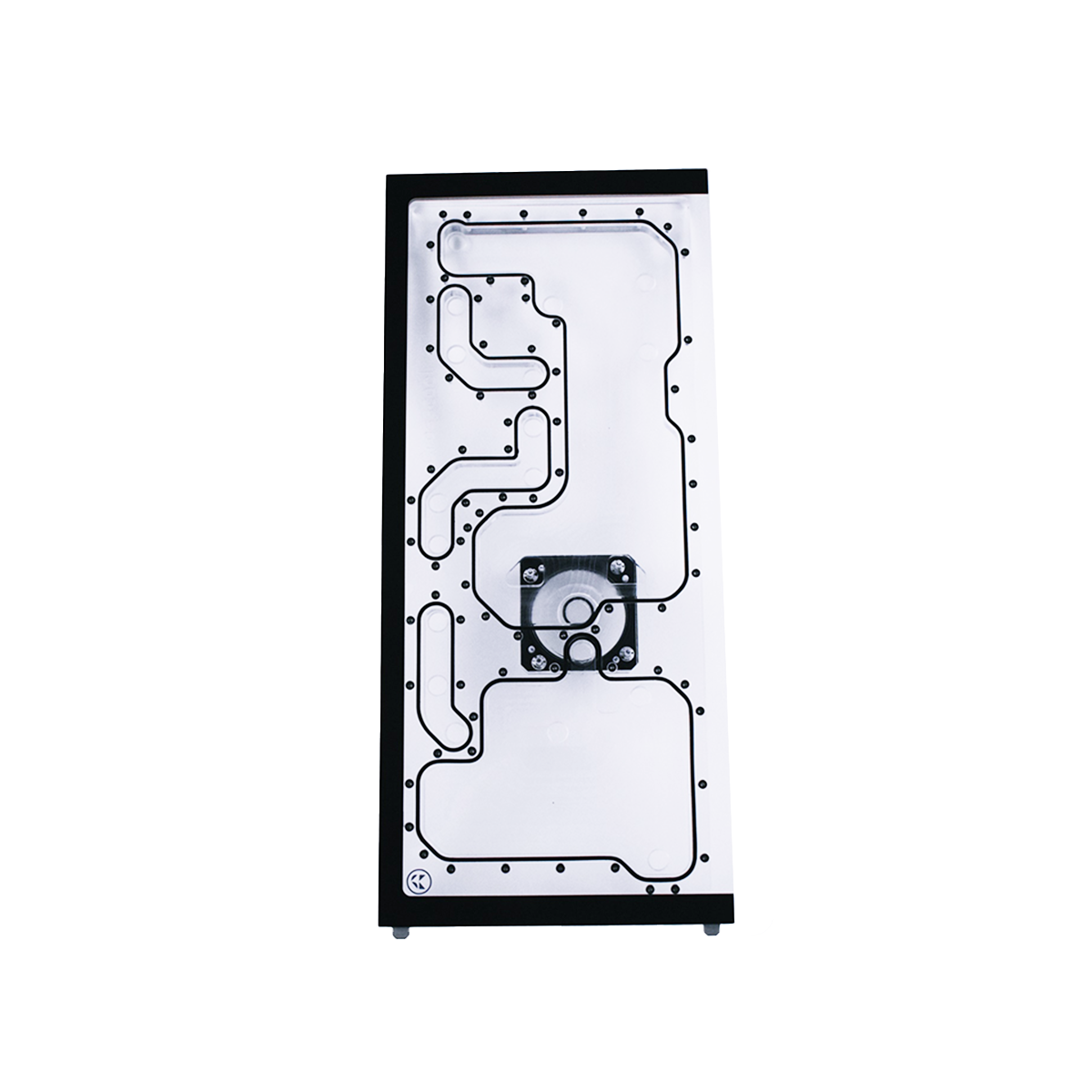

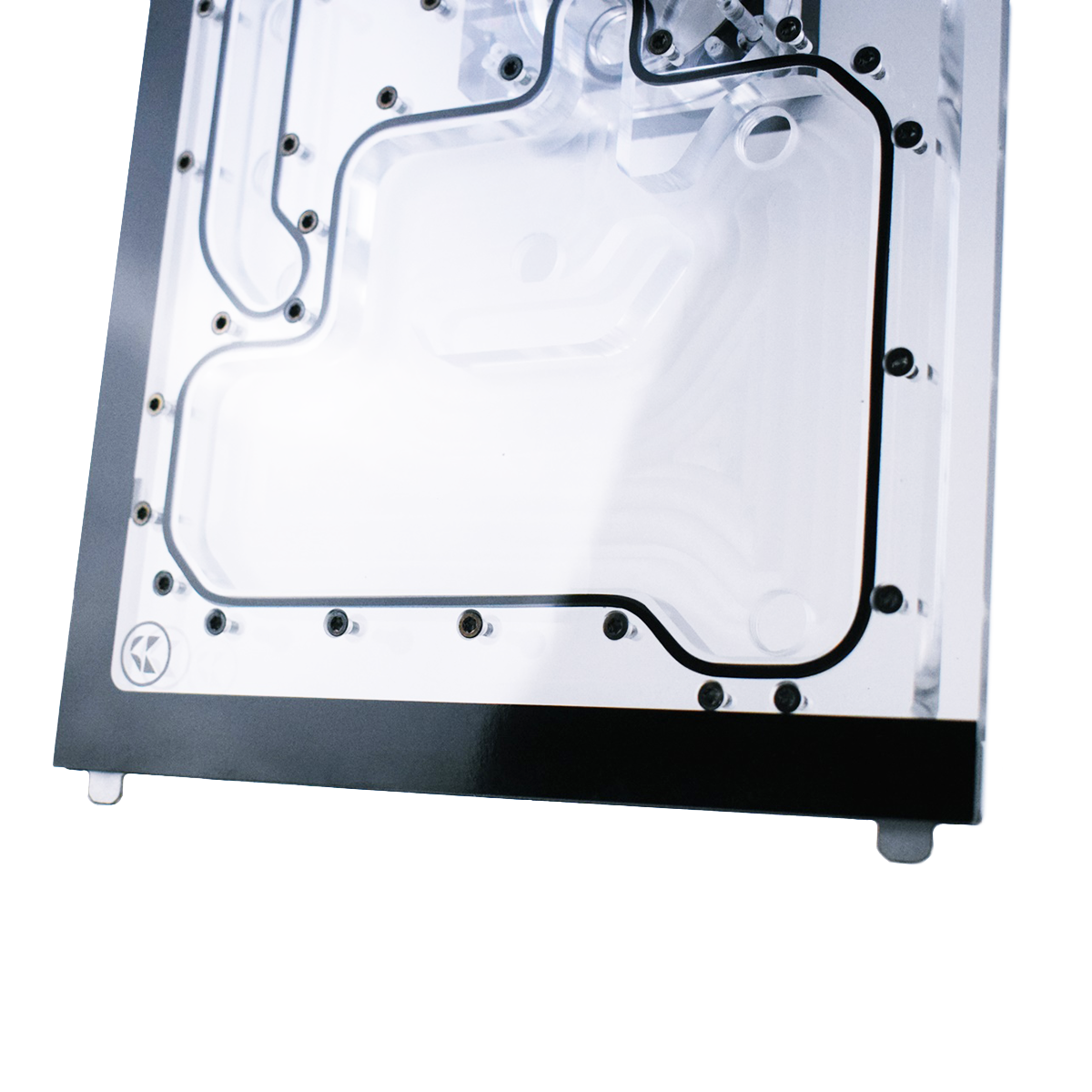

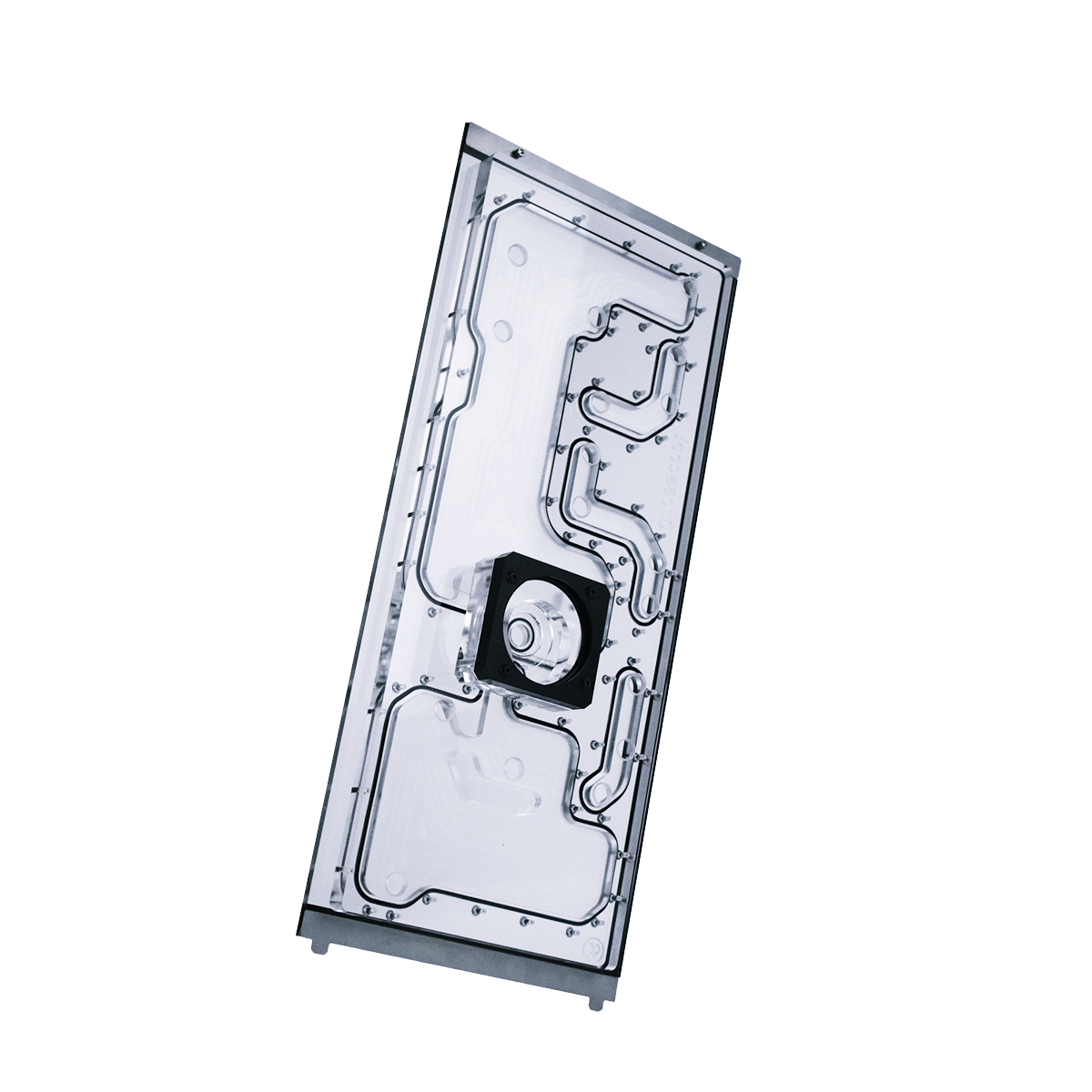

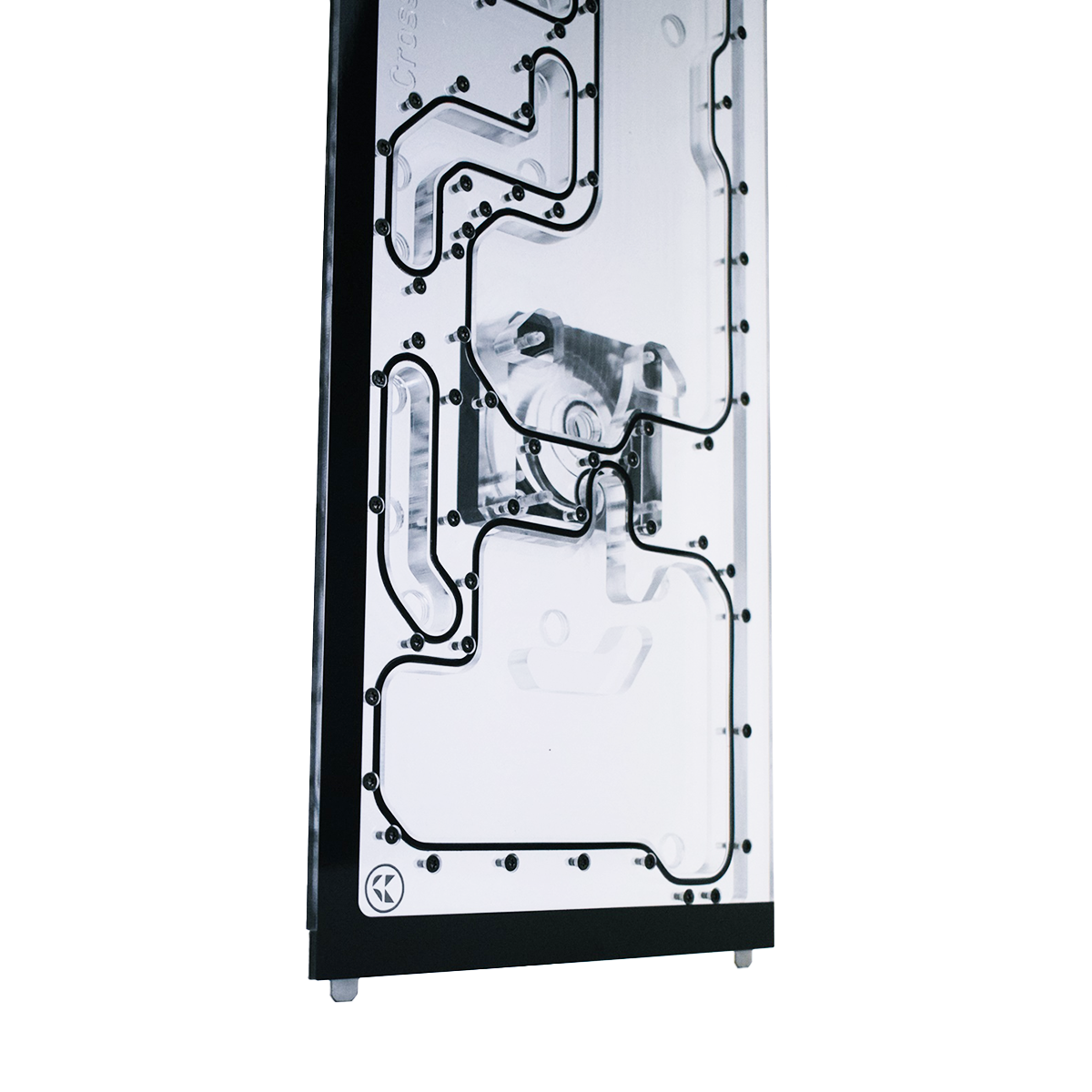

The Lian Li XL Distroplate Crosscool is a Distroplate made of transparent acrylic glass. It has 17 G1/4 inch connections and is intended for installation in the front of the Lian Li 011D XL. It enables the connection of the graphics card and CPU. Due to this distroplate, up to three 360mm radiators can be installed.
features in detail
scope of delivery
• 1x reservoir Lian Li XL Distroplate Crosscool
• 2x M3 screws
• 1x adapter D5 or DDC (without screws)
features in detail
We've taken on the next member of the Lian Li series and created something new and great.
The "Lian Li XL Distroplate Crosscool" replaces the tempered glass pane in the front and the installation is effortless thanks to the unique plug-in system. Two small hidden screws attach the Distroplate securely to the case. We have also come up with an elegant solution for the D5 pump, namely a specially developed adapter that ensures that the pump fits snugly on the Distroplate. This results in a tidy housing.
Thanks to the RGB lighting of the housing, the Crosscool is presented in a perfect light and is therefore a real eye-catcher, not only because of the unique design.
Features at a glance
• largest distroplate of the Lian Li series
• Unique plug-in system for easy installation in the housing
• Adapter allows a D5/ DDC pump to fit perfectly
• optimized for the Lian Li XL housing
Technical details • Material: high-quality acrylic glass, plastic
• Manufacturing: CNC machining of the acrylic, assembly by hand
• Product Dimensions: Dimensions without pump (W x H x D): 487 x 211 x 21 mm
Dimensions with pump (W x H x D): 487 x 211 x 90 mm
Dimensions with pump (W x H x D): 487 x 211 x 90 mm
• Color: Clear
• Number of reservoirs: 5 (=3 connecting passages & 2 water containers)
• Gasket: EPDM
• Connectors: 17x G1/4 inch connectors
• Connectors: 17x G1/4 inch connectors
• Capacity: 435ml
• Compatibility: 3x360mm fan space
• Compatibility: 3x360mm fan space
scope of delivery
• 1x reservoir Lian Li XL Distroplate Crosscool
• 2x M3 screws
• 1x adapter D5 or DDC (without screws)
Assembly instructions
