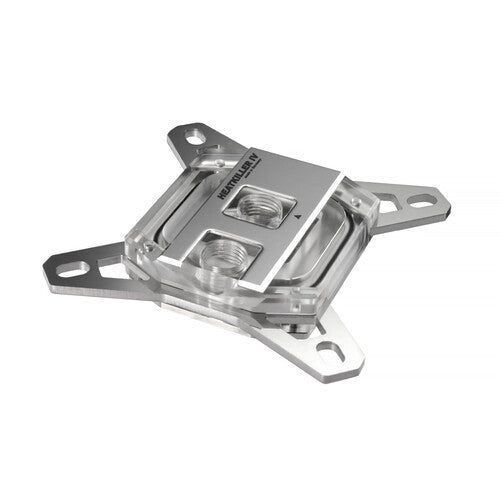

HEATKILLER IV PRO (INTEL LGA 1X00) ACRYLIC

Our HEATKILLER® CPU series water coolers are among the best-known and most powerful processor water coolers in the world. Since its presentation in 2001, the model series has been continuously expanded and perfected. The HEATKILLER® IV represents the most extensive and up-to-date further development.

• up to 3°C better temperatures compared to the previous model
• more flow thanks to the larger nozzle and collection channel, resulting in fewer blockages
• tool-free Easy-Mount-System
• extra large connections thanks to 25mm spacing

New cooling structure and optimized flow

This is where our cooling structure got the biggest overhaul. Here we have given the cooler much finer fins to ensure a larger surface and thus better heat dissipation. We made sure to design the slats in such a way that the flow does not suffer.

Compared to the predecessor, we have dispensed with the nozzle plate and integrated it directly into the lid. Thanks to the new design, we were able to increase performance, improve flow and optimize reliability.

Heatkiller IV Easymount, Top workmanship, Made in Germany

In order to make assembly as easy as possible, we have developed the Easy-Mount-System. This allows the cooler to be assembled or disassembled at any time without tools after the initial assembly. The mounting system is upgraded by a fixed stop on the mounting bracket. Incorrect assembly is thus virtually impossible.
But the design should also correspond to a product from Watercool. The best processing technology, garnished with the finest materials, result in our Heatkiller IV cooler. In order to present the opulent design in the best possible way, we have taken our customer's wishes into account and considered connection types with up to 19mm.

Made in Germany

The production takes place with the greatest care on our ultra-modern CNC machine park in Waren-Müritz. Many work steps are carried out by hand and each product is perfected according to the four-eyes principle. Made in Germany as you would imagine.

Technical specifications:
Material upper part: PLEXIGLAS® GS (PMMA)

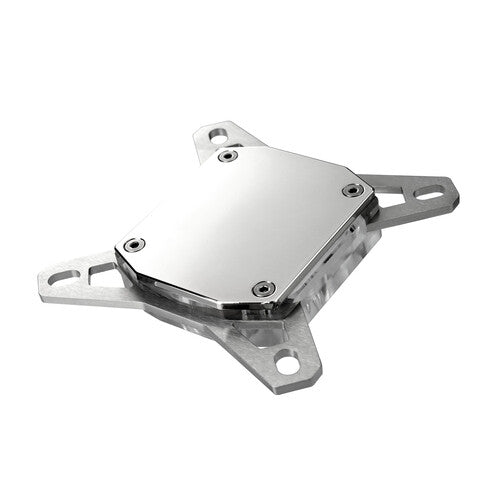

Material base plate: copper - nickel-plated
Material brackets and inlay: stainless steel - polished
Material EasyMountSystem: brass - nickel-plated
Dimensions cooler (L x W x H): 66 x 59 x 17 mm
Weight: approx: 450g
Seals: NBR 70
Connection thread: 2x G ¼ inch (DIN ISO 228-1)
Distance between the connecting threads: 25 mm
Socket compatibility INTEL: 1150, 1200 and 1700

Scope of delivery:
HEATKILLER® IV PRO (INTEL processor) ACRYLIC
mounting material
assembly Instructions
